LCCF6-14B-L PAN

Name: LCCF6-14B-L PAN
Brand: Panduit
SKU: LCCF6-14B-L PAN
Availability: OutOfStock

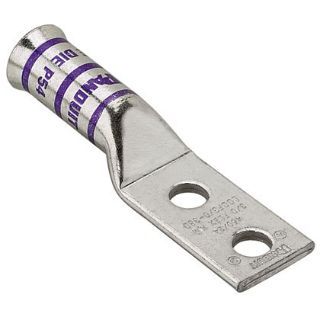

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCCF6-14B-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCF6-14B-L, Compression Connector Lug, 2-Hole Type LCCF, Flexible Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.83 in Overall Length, Flared/Long Barrel, 0.22 in ID x 0.37 in OD x 1.22 in L Barrel, Specifications: 33.3 mm L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Blue

Application

For use with flexible and extra flexible copper conductors

Standards

Features

Can be used with flex conductor class K, m and diesel locomotive
Long barrel maximizes the number of crimps and provides premium wire pullout strength and electrical performance
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Color coded barrels marked with Panduit® die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.22 in ID x 0.37 in OD x 1.22 in L
Barrel Type:	Flared/Long
Color:	Blue
Conductor Size:	6 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P24
Material:	Copper
Mounting Hole Size:	0.27 in
Overall Length:	2.54 in
Series:	LCCF
Specifications:	3/4 in Stud Hole Spacing, Tin Plated Finish
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.48 in W x 0.08 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
