LCCF6-14BF-L PAN

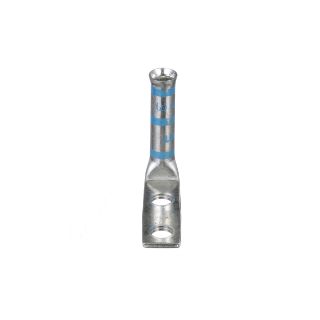

Picture of LCCF6-14BF-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCCF6-14BF-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCF6-14BF-L, Lug Compression Connector, 2-Hole Type LCCF-F, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, 90 deg Tongue, 1.37 in L x 0.48 in W x 0.08 in THK Tongue, 1.81 in Overall Length, Flared/Long Barrel, 0.22 in ID x 0.37 in OD x 1.22 in L Barrel, Specifications: 3/4 in Stud Hole Spacing, 1-5/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Blue

Application

For diesel locomotive

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/03 | NEBS Level 3 | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
  • Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
  • Flared entry prevents bent back strands when inserting fine strand conductor into barrel
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
  • Without inspection window

Specifications

Barrel Size:0.22 in ID x 0.37 in OD x 1.22 in L
Barrel Type:Flared/Long
Color:Blue
Conductor Size:6 AWG
Conductor Type:Extra-Flexible/Flexible Copper
Country of Origin:MX
Die Code:P24
Material:Copper
Mounting Hole Size:1.31 in
Overall Length:1.81 in
Series:LCCF-F
Specifications:1-5/16 in L Wire Strip, 3/4 in Stud Hole Spacing, Tin Plated
Stud Size:1/4 in
Temperature Rating:90 deg C
Tongue Size:1.37 in L x 0.48 in W x 0.08 in THK
Tongue Type:90 deg
Voltage Rating:35 kV
