LCCF8-14BH-L PAN

Name: LCCF8-14BH-L PAN
Brand: Panduit
SKU: LCCF8-14BH-L PAN
Availability: OutOfStock

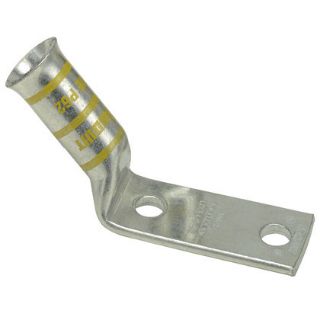

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCCF8-14BH-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCF8-14BH-L, Compression Connector Lug, 2-Hole Type LCCF-H, Flexible Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 1/4 in Stud, 45 deg Tongue, 0.48 in W x 0.07 in THK Tongue, 2.12 in Overall Length, Flared/Long Barrel, 0.18 in ID x 0.32 in OD x 0.76 in L Barrel, Specifications: 20.6 mm L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Red, 0.91 in H Dimensions

Application

For diesel locomotive code conductor

Standards

Features

Can be used with flex conductor class K, m and diesel locomotive
Long barrel maximizes the number of crimps and provides premium wire pullout strength and electrical performance
Flared entry prevents bent back strands when inserting fine strand conductor into barrel
Color coded barrels marked with Panduit® die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.18 in ID x 0.32 in OD x 0.76 in L
Barrel Type:	Flared/Long
Color:	Red
Conductor Size:	8 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P21
Dimensions:	0.91 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.27 in
Overall Length:	2.12 in
Series:	LCCF
Specifications:	20.6 mm L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.48 in W x 0.07 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
