LCCX1-14B-X PAN

Name: LCCX1-14B-X PAN
Brand: Panduit
SKU: LCCX1-14B-X PAN
Price: 10.49 USD
Availability: OutOfStock

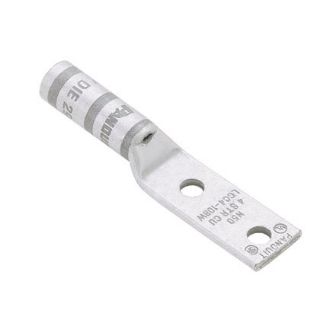

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCCX1-14B-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$10.49 / EA

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCX1-14B-X, Compression Connector Lug, 2-Hole Type LCCX, Flexible/Code Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 1/4 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 3.44 in Overall Length, Long/Standard Barrel, 0.39 in ID x 0.52 in OD x 1.44 in L Barrel, Specifications: 38 mm L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Green

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, m and diesel locomotive
Long barrel maximizes the number of crimps and provides premium wire pullout strength and electrical performance
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.39 in ID x 0.52 in OD x 1.44 in L
Barrel Type:	Long
Color:	Green
Conductor Size:	1 AWG
Conductor Type:	Extra-Flexible/Flexible Copper
Country of Origin:	MX
Die Code:	P37
Material:	Copper
Mounting Hole Size:	0.27 in
Overall Length:	3.19 in
Series:	LCCX
Specifications:	3/4 in Stud Hole Spacing, Tin Plated Finish
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.76 in W x 0.12 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
