LCCX1/0-12-X PAN

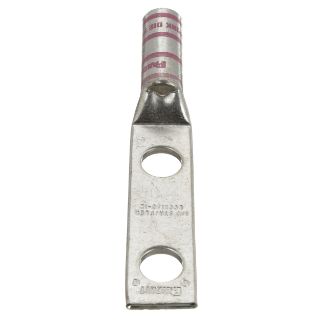

Picture of LCCX1/0-12-X PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCCX1/0-12-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$11.98 / EA
This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCX1/0-12-X, Lug Compression Connector, 2-Hole Type LCCX, Stranded/Flex Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 1/2 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 4.83 in Overall Length, Long/Standard Barrel, 0.45 in ID x 0.58 in OD x 1.5 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 1-9/16 in L Wire Strip, 90 deg C, Pink

Application

For code conductor

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/03 | J-STD-607-A Compliant | RoHS Compliant | TIA-942 | UL 486A/486B File No. E52164

Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:0.45 in ID x 0.58 in OD x 1.5 in L
Barrel Type:Long
Color:Pink
Conductor Size:1/0 AWG
Conductor Type:Extra-Flexible/Flexible/Stranded Copper
Country of Origin:MX
Die Code:P42
Material:Tin Plated Copper
Mounting Hole Size:1.56 in
Overall Length:4.83 in
Series:LCCX
Specifications:1-3/4 in Stud Hole Spacing, 1-9/16 in L Wire Strip
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:0.85 in W x 0.13 in THK
Tongue Type:Straight
Voltage Rating:35 kV
