LCCX4-14B-L PAN

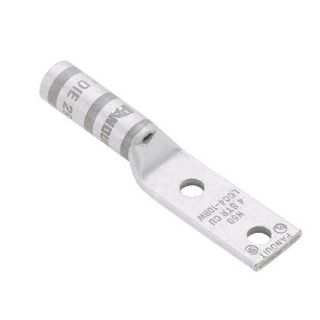

Picture of LCCX4-14B-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCCX4-14B-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$8.34 / EA
This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCX4-14B-L, Lug Compression Connector, 2-Hole Type LCCX, Stranded/Flex Copper Conductor, 4 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 2.62 in Overall Length, Long/Standard Barrel, 0.28 in ID x 0.38 in OD x 1.05 in L Barrel, Specifications: 3/4 in Stud Hole Spacing, 1-1/8 in L Wire Strip, 90 deg C, Gray

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

ARRA Compliant | ASTM B545-97 Class C | Buy American Act Compliant | CSA C22.2 No. 65-13 | RoHS Compliant | UL 486A | UL 486B | UL Listed File No. E52164

Features

  • Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
  • Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:0.28 in ID x 0.38 in OD x 1.05 in L
Barrel Type:Long
Color:Gray
Conductor Size:3 AWG, 4 AWG, 5 AWG
Conductor Type:Extra-Flexible/Flexible Copper
Country of Origin:MX
Die Code:P29
Material:Tin Plated Copper
Mounting Hole Size:1.13 in
Overall Length:2.62 in
Series:LCCX
Specifications:3/4 in Stud Hole Spacing
Stud Size:1/4 in
Temperature Rating:90 deg C
Tongue Size:0.55 in W x 0.09 in THK
Tongue Type:Straight
Voltage Rating:35 kV
