LCCX4-38D-L PAN

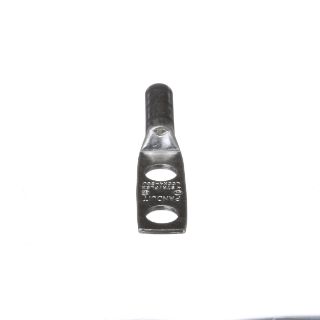

Picture of LCCX4-38D-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCCX4-38D-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$8.67 / EA
This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCX4-38D-L, Lug Compression Connector, 2-Hole Type LCCX, Stranded/Flex Copper Conductor, 4 AWG Conductor, Die Code: P29, 35 kV, 3/8 in Stud, Straight Tongue, 0.62 in W x 0.08 in THK Tongue, 3.09 in Overall Length, Long/Standard Barrel, 0.28 in ID x 0.38 in OD x 1.05 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1-1/8 in L Wire Strip, 90 deg C, Gray

Application

For code conductor

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/03 | J-STD-607-A Compliant | RoHS Compliant | TIA-942 | UL 486A/486B File No. E52164

Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:0.28 in ID x 0.38 in OD x 1.05 in L
Barrel Type:Long
Color:Gray
Conductor Size:3 AWG, 4 AWG, 5 AWG
Conductor Type:Extra-Flexible/Flexible/Stranded Copper
Country of Origin:MX
Die Code:P29
Material:Tin Plated Copper
Mounting Hole Size:1.13 in
Overall Length:3.09 in
Series:LCCX
Specifications:1 in Stud Hole Spacing, 1-1/8 in L Wire Strip
Stud Size:3/8 in
Temperature Rating:90 deg C
Tongue Size:0.62 in W x 0.08 in THK
Tongue Type:Straight
Voltage Rating:35 kV
