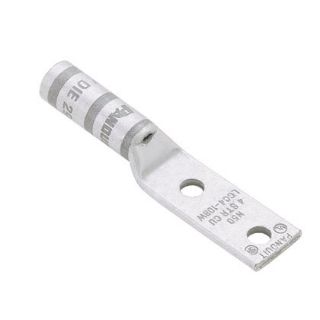

LCCX4/0-14B-X PAN

Name: LCCX4/0-14B-X PAN
Brand: Panduit
SKU: LCCX4/0-14B-X PAN
Price: 15.90 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCCX4/0-14B-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$15.90 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCX4/0-14B-X, Lug Compression Connector, 2-Hole Type LCCX, Stranded/Flex Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/4 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 4.07 in Overall Length, Long/Standard Barrel, 2.24 in L Barrel, Specifications: 3/4 in Stud Hole Spacing, 2-5/16 in L Wire Strip, 90 deg C, Purple

Standards

Features

Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	2.24 in L
Barrel Type:	Long
Color:	Purple
Conductor Size:	4/0 AWG
Conductor Type:	Copper
Country of Origin:	MX
Die Code:	P54
Material:	Tin Plated Copper
Mounting Hole Size:	2.31 in
Overall Length:	4.07 in
Series:	LCCX
Specifications:	2.31 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	1.19 in W x 0.16 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
