LCCX6-14AB-L PAN

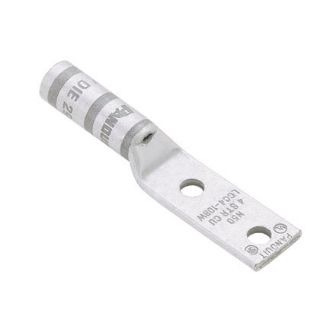

Picture of LCCX6-14AB-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCCX6-14AB-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$6.80 / EA
This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCX6-14AB-L, Lug Compression Connector, 2-Hole Type LCCX, Stranded/Flex Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, Slotted Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.61 in Overall Length, Long/Standard Barrel, 0.22 in ID x 0.31 in OD x 1.07 in L Barrel, Specifications: 0.63 to 0.75 in Stud Hole Spacing, 1-1/8 in L Wire Strip, 90 deg C, Blue

Standards

ABS Certified | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/03 | J-STD-607-A Compliant | NEBS Level 3 | RoHS Compliant | TIA-942 | UL 486A/486B File No. E52164

Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • 6 AWG class B, C, G, H, I, K, M and DLO conductor

Specifications

Barrel Size:0.22 in ID x 0.31 in OD x 1.07 in L
Barrel Type:Long
Color:Blue
Conductor Size:6 AWG
Conductor Type:Flexible Copper
Country of Origin:MX
Die Code:P24
Material:Tin Plated Copper
Mounting Hole Size:1.13 in
Overall Length:2.61 in
Series:LCCX
Specifications:0.63 to 0.75 in Stud Hole Spacing, 1-1/8 in L Wire Strip
Stud Size:1/4 in
Temperature Rating:90 deg C
Tongue Size:0.48 in W x 0.08 in THK
Tongue Type:Slotted Straight
Voltage Rating:35 kV
