LCCXF8-14A-L PAN

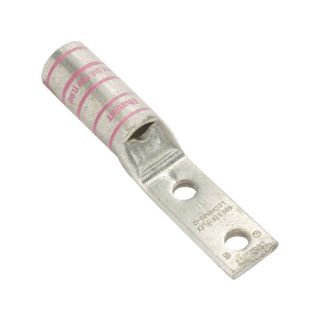

Picture of LCCXF8-14A-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCCXF8-14A-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5.95 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCXF8-14A-L, Compression Connector Lug, 2-Hole Type LCCXF, 8 AWG Conductor, 1/4 in Stud, Straight Tongue, Flared/Long Barrel, Copper

Application

For use with class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed

Features

  • Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion

Specifications

Barrel Type:Flared/Long
Conductor Size:8 AWG
Conductor Type:Flexible
Country of Origin:MX
Material:Copper
Series:LCCXF
Stud Size:1/4 in
Temperature Rating:90 deg C
Tongue Type:Straight
Voltage Rating:35 kV
