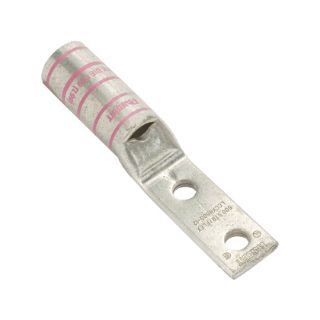

LCCXN500-12-6 PAN

Name: LCCXN500-12-6 PAN
Brand: Panduit
SKU: LCCXN500-12-6 PAN
Price: 57.32 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCCXN500-12-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$57.32 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCCXN500-12-6, Compression Connector Lug, 2-Hole Type LCCXN, Flexible Conductor, 500 kcmil Conductor, Die Code: P99, 35 kV, 1/2 in Stud, Narrow/Straight Tongue, 1.3 in W x 0.32 in THK Tongue, 6.71 in Overall Length, Long/Standard Barrel, 1.03 in ID x 1.3 in OD x 2.88 in L Barrel, Specifications: 74.6 mm L Wire Strip, Tin Plated Finish, 90 deg C, 0.53 in Mounting Hole, Copper, Pink

Application

For diesel locomotive code conductor

Standards

Features

Narrow tongue width for limited space applications
Can be used with flex conductor class G, H, I, K, m and diesel locomotive
Long barrel maximizes the number of crimps and provides premium wire pullout strength and electrical performance
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	1.03 in ID x 1.3 in OD x 2.88 in L
Barrel Type:	Long
Color:	Pink
Conductor Size:	500 kcmil
Conductor Type:	Flexible
Country of Origin:	MX
Die Code:	P99
Material:	Copper
Mounting Hole Size:	0.53 in
Overall Length:	6.71 in
Series:	LCCXN
Specifications:	1-3/4 in Stud Hole Spacing
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.3 in W x 0.32 in THK
Tongue Type:	Narrow/Straight
Voltage Rating:	35 kV
