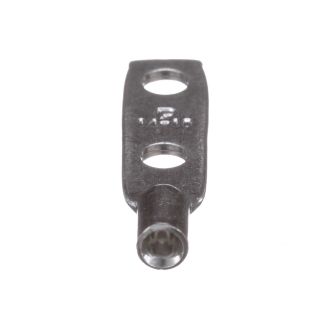

LCD10-10A-L PAN

Name: LCD10-10A-L PAN
Brand: Panduit
SKU: LCD10-10A-L PAN
Price: 7.79 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD10-10A-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$7.79 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCD10-10A-L, Compression Connector Lug, 2-Hole, Series: LCD, Code Copper Conductor, 10 AWG Conductor, 35 kV, #10 Stud, Straight Tongue, 0.38 in W x 0.06 in THK Tongue, 1.69 in Overall Length, Standard Barrel, 0.13 in ID x 0.22 in OD x 0.38 in L Barrel, Specifications: 11.1 mm L Wire Strip, Tin Plated Finish, 90 deg C, 11.1 mm Mounting Hole

Application

For use with stranded copper conductors

Standards

Features

color-coded barrel marked with Panduit® and specified competitor die index numbers for proper crimp die selection
An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
Tin-plated to inhibit corrosion
color-coded barrel
Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V

Specifications

Barrel Size:	0.13 in ID x 0.22 in OD x 0.38 in L
Barrel Type:	Standard
Conductor Size:	10 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Material:	Copper
Mounting Hole Size:	11.1 mm
Overall Length:	1.69 in
Series:	LCD
Specifications:	0.63 in Stud Hole Spacing, 7/16 in L Wire Strip, Tin Plated
Stud Size:	#10
Temperature Rating:	90 deg C
Tongue Size:	0.38 in W x 0.06 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
