LCD10-10AF-L PAN

Name: LCD10-10AF-L PAN
Brand: Panduit
SKU: LCD10-10AF-L PAN
Price: 10.81 USD
Availability: OutOfStock

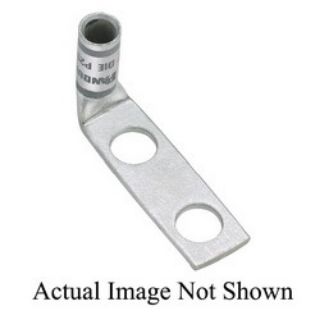

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD10-10AF-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$10.81 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCD10-10AF-L, Lug Compression Connector, 2-Hole Type LCD-F, Solid/Stranded Copper Conductor, 14 to 10 AWG, 12 to 10 AWG Conductor, 35 kV, #10 Stud, 90 deg Tongue, 1.16 in L x 0.38 in W x 0.06 in THK Tongue, 1.47 in Overall Length, Standard Barrel, 0.13 in ID x 0.22 in OD x 0.38 in L Barrel, Specifications: 5/8 in Stud Hole Spacing, 7/16 in L Wire Strip, 90 deg C

Application

For use to provide permanent terminations for a variety of power and grounding applications

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
For use with flexible copper conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.13 in ID x 0.22 in OD x 0.38 in L
Barrel Type:	Standard
Conductor Size:	14 to 10 AWG, 12 to 10 AWG
Conductor Type:	Flexible/Solid/Stranded Copper
Country of Origin:	MX
Material:	Tin Plated Copper
Mounting Hole Size:	42.552 in
Overall Length:	1.47 in
Series:	LCD
Specifications:	0.63 in Stud Hole Spacing, 7/16 in L Wire Strip
Stud Size:	#10
Temperature Rating:	90 deg C
Tongue Size:	0.38 in W x 0.06 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
