LCD2-56DF-Q PAN

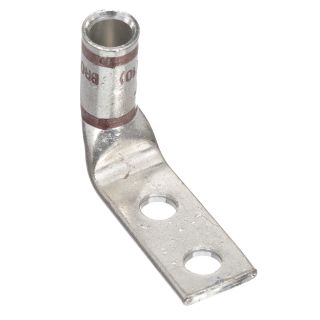

Name: LCD2-56DF-Q PAN
Brand: Panduit
SKU: LCD2-56DF-Q PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD2-56DF-Q

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCD2-56DF-Q, Compression Lug, 2-Stud Hole, Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 5/16 in Stud, 16.764 mm W x 2.54 mm THK Tongue, 2.36 in Overall Length, Standard Barrel with Inspection Window, 0.88 in L Barrel, Specifications: 90 deg Tongue, 90 deg C, 0.938 in Mounting Hole, Brown

Standards

Features

Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin-coated to inhibit corrosion
UL Listed and CSA Certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit® Uni-Die™ dieless crimping tools
Tested by telcordia - meets NEBS level 3
American bureau of shipping approved
Standard Barrel with Inspection Window

Specifications

Barrel Size:	0.88 in
Barrel Type:	Standard
Color:	Brown
Conductor Size:	2 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P33
Material:	TiN Coated Copper
Mounting Hole Size:	0.34 in
Overall Length:	2.36 in
Series:	LCD
Specifications:	1 in Hole Spacing
Stud Size:	5/16 in
Temperature Rating:	90 deg C
Tongue Size:	0.66 in W x 0.1 in THK
Tongue Type:	90 deg Standard
Voltage Rating:	35 kV
