LCD4/0-12F-X PAN

Name: LCD4/0-12F-X PAN
Brand: Panduit
SKU: LCD4/0-12F-X PAN
Price: 19.60 USD
Availability: OutOfStock

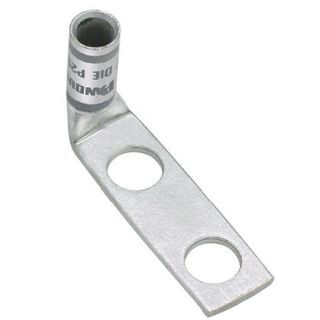

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD4/0-12F-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$19.60 / EA

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCD4/0-12F-X, Compression Connector Lug, 2-Hole Type LCD-F, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, 90 deg Tongue, 3 in L x 1.06 in W x 0.14 in THK Tongue, 3.98 in Overall Length, Standard Barrel, 0.57 in ID x 0.71 in OD x 1.19 in L Barrel, Specifications: 31.8 mm L Wire Strip, 90 deg C, 0.53 in Mounting Hole, Tin Plated Copper, Purple, 1.93 in H Dimensions

Application

For stranded copper conductors

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.57 in ID x 0.71 in OD x 1.19 in L
Barrel Type:	Standard
Color:	Purple
Conductor Size:	4/0 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P54
Dimensions:	1.93 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.53 in
Overall Length:	3.98 in
Series:	LCD
Specifications:	1-3/4 in Stud Hole Spacing
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.06 in W x 0.14 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
