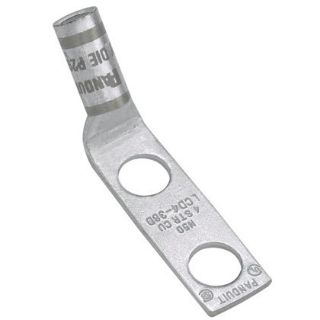

LCD500-38DH-6 PAN

Name: LCD500-38DH-6 PAN
Brand: Panduit
SKU: LCD500-38DH-6 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD500-38DH-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCD500-38DH-6, Compression Connector Lug, 2-Hole Type LCD-H, 500 kcmil Conductor, Die Code: P87, 35 kV, 3/8 in Stud, 45 deg Tongue, 1.54 in W x 0.22 in THK Tongue, 3-3/4 in Overall Length, Standard Barrel, 0.84 in ID x 1.06 in OD x 1.75 in L Barrel, Specifications: 46 mm L Wire Strip, 90 deg C, 0.41 in Mounting Hole, Tin Plated Copper, Brown, 2.63 in H Dimensions

Application

For stranded copper conductors

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.84 in ID x 1.06 in OD x 1.75 in L
Barrel Type:	Standard
Color:	Brown
Conductor Size:	500 kcmil
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P87
Dimensions:	2.63 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.41 in
Overall Length:	3-3/4 in
Series:	LCD
Specifications:	1 in Stud Hole Spacing
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.54 in W x 0.22 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
