LCD6-14A-L PAN

Name: LCD6-14A-L PAN
Brand: Panduit
SKU: LCD6-14A-L PAN
Price: 5.33 USD
Availability: OutOfStock

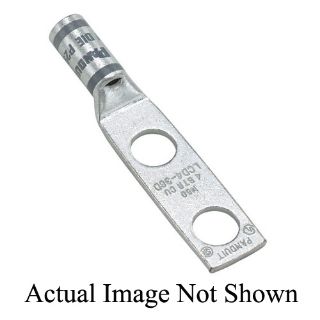

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD6-14A-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$5.33 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCD6-14A-L, Compression Connector Lug, 2-Hole Type LCD, Code Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.24 in Overall Length, Standard Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, Specifications: 22.2 mm L Wire Strip, Tin Plated Finish, 90 deg C, 0.27 in Mounting Hole, Blue

Application

For use with stranded copper conductors

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.22 in ID x 0.31 in OD x 0.81 in L
Barrel Type:	Standard
Color:	Blue
Conductor Size:	6 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P24
Material:	Copper
Mounting Hole Size:	0.27 in
Overall Length:	2.24 in
Series:	LCD
Specifications:	0.63 in Stud Hole Spacing, 7/8 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.48 in W x 0.08 in THK
Tongue Type:	Standard/Straight
Voltage Rating:	35 kV
