LCD600-00-6 PAN

Name: LCD600-00-6 PAN
Brand: Panduit
SKU: LCD600-00-6 PAN
Price: 44.53 USD
Availability: OutOfStock

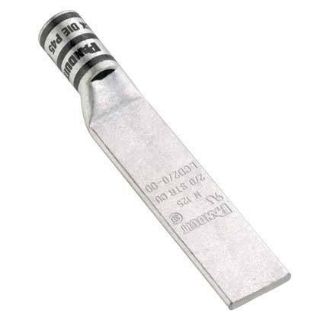

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD600-00-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$44.53 / EA

Description

Brand Name

Panduit®

Type

2-Hole Type LCD

Description

Panduit®, LCD600-00-6, Lug Compression Connector, 2-Hole Type LCD, 600 kcmil Conductor, Die Code: P94, Blank/Long Tongue, 3 in L x 1.7 in W x 0.26 in THK Tongue, 5.42 in Overall Length, Standard Barrel, 1.19 in ID x 1.19 in OD x 1.75 in L Barrel, Specifications: 1-13/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Green

Standards

Features

Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
For use with stranded copper conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.92 in ID x 1.19 in OD x 1.75 in L
Barrel Type:	Standard
Color:	Green
Conductor Size:	600 kcmil
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P94
Material:	Tin Plated Copper
Mounting Hole Size:	1.81 in
Overall Length:	5.42 in
Series:	LCD-00
Specifications:	1-13/16 in L Wire Strip
Temperature Rating:	90 deg C
Tongue Size:	3 in L x 1.7 in W x 0.26 in THK
Tongue Type:	Blank/Long
Voltage Rating:	35 kV
