LCD600-12F-6 PAN

Name: LCD600-12F-6 PAN
Brand: Panduit
SKU: LCD600-12F-6 PAN
Availability: OutOfStock

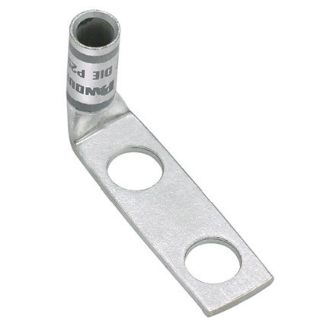

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD600-12F-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCD600-12F-6, Compression Connector Lug, 2-Hole Type LCD-F, 600 kcmil Conductor, Die Code: P94, 35 kV, 1/2 in Stud, 90 deg Tongue, 3 in L x 1.7 in W x 0.26 in THK Tongue, 4.44 in Overall Length, Standard Barrel, 0.92 in ID x 1.19 in OD x 1.75 in L Barrel, Specifications: 46 mm L Wire Strip, 90 deg C, 0.53 in Mounting Hole, Tin Plated Copper, Green, 2.92 in H Dimensions

Application

For stranded copper conductors

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.92 in ID x 1.19 in OD x 1.75 in L
Barrel Type:	Standard
Color:	Green
Conductor Size:	600 kcmil
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P94
Dimensions:	2.92 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.53 in
Overall Length:	4.44 in
Series:	LCD
Specifications:	46 mm L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.7 in W x 0.26 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
