LCD750-00-6 PAN

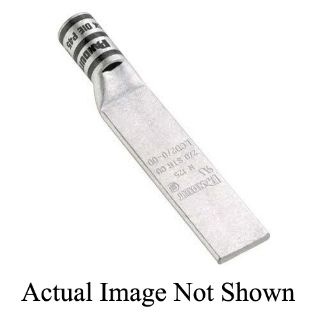

Picture of LCD750-00-6 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCD750-00-6
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$49.96 / EA

Description

Brand Name

Panduit®

Type

Type LCD-00 Blank

Description

Panduit®, LCD750-00-6, Compression Connector Lug, Type LCD-00 Blank, 750 kcmil Conductor, Die Code: P106, 35 kV, Straight Tongue, 3 in L x 1.89 in W x 0.26 in THK Tongue, 5.65 in Overall Length, Long/Standard Barrel, 1.03 in ID x 1.3 in OD x 1.88 in L Barrel, Specifications: 49.2 mm L Wire Strip, 90 deg C, Tin Plated Copper, Black

Application

For use with stranded copper conductors

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65-03 | NEBS Level 3 | RoHS Compliant | UL Listed File No. E52164

Features

  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion

Specifications

Barrel Size:1.03 in ID x 1.3 in OD x 1.88 in L
Barrel Type:Long/Standard
Color:Black
Conductor Size:750 kcmil
Conductor Type:Code Copper
Country of Origin:MX
Die Code:P106
Material:Copper
Mounting Hole Size:1.94 in
Overall Length:5.65 in
Series:LCD-00
Specifications:1-15/16 in L Wire Strip, Tin Plated Finish
Temperature Rating:90 deg C
Tongue Size:3 in L x 1.89 in W x 0.26 in THK
Tongue Type:Blank/Long/Straight
Voltage Rating:35 kV
