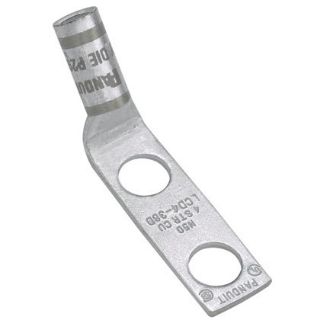

LCD8-38DH-L PAN

Name: LCD8-38DH-L PAN
Brand: Panduit
SKU: LCD8-38DH-L PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCD8-38DH-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCD8-38DH-L, Compression Connector Lug, 2-Hole Type LCD-H, 8 AWG Conductor, Die Code: P21, 35 kV, 3/8 in Stud, 45 deg Tongue, 0.63 in W x 0.05 in THK Tongue, 2.4 in Overall Length, Standard Barrel, 0.18 in ID x 0.27 in OD x 0.56 in L Barrel, Specifications: 15.9 mm L Wire Strip, 90 deg C, 0.41 in Mounting Hole, Tin Plated Copper, Red, 0.74 in H Dimensions

Application

For stranded copper conductors

Standards

Features

Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.18 in ID x 0.27 in OD x 0.56 in L
Barrel Type:	Standard
Color:	Red
Conductor Size:	8 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P21
Dimensions:	0.74 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.41 in
Overall Length:	2.4 in
Series:	LCD
Specifications:	1 in Stud Hole Spacing
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	0.63 in W x 0.05 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
