LCDN1/0-14AF-X PAN

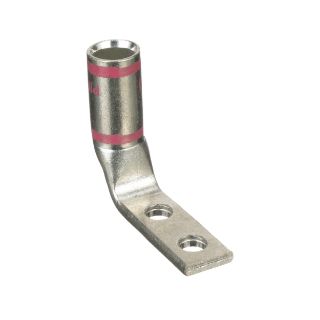

Picture of LCDN1/0-14AF-X PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCDN1/0-14AF-X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

2-Stud Hole

Description

Panduit®, LCDN1/0-14AF-X, Compression Lug, 2-Stud Hole, Stranded Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 1/4 in Stud, Narrow Tongue, 0.52 in W x 0.12 in THK Tongue, 1.54 in Overall Length, Standard Barrel with Inspection Window, 0.94 in L Barrel, Specifications: 90 deg Tongue, 90 deg C, 1 in Mounting Hole, Pink

Standards

ARRA Compliant | BAA Compliant | CSA Certified | RoHS Compliant | cULus Listed | UL Listed | Buy American Act Compliant

Specifications

Barrel Size:0.94 in L
Barrel Type:Standard Barrel with Inspection Window
Color:Pink
Conductor Size:1/0 AWG
Conductor Type:Stranded Copper
Country of Origin:MX
Die Code:P42
Mounting Hole Size:1 in
Overall Length:1.54 in
Specifications:90 deg Tongue
Stud Size:1/4 in
Temperature Rating:90 deg C
Tongue Size:0.52 in W x 0.12 in THK
Tongue Type:Narrow
Voltage Rating:35 kV
