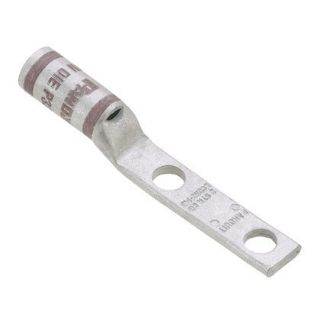

LCDN1/0-14B-X PAN

Name: LCDN1/0-14B-X PAN
Brand: Panduit
SKU: LCDN1/0-14B-X PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDN1/0-14B-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDN1/0-14B-X, Compression Connector Lug, 2-Hole Type LCDN, 1/0 AWG Conductor, Die Code: P42, 35 kV, 1/4 in Stud, Narrow/Straight Tongue, 0.52 in W x 0.13 in THK Tongue, 2.7 in Overall Length, Standard Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, Specifications: 1 in L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Pink

Application

For use with stranded copper conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed

Features

Narrow tongue width for limited space applications
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.39 in ID x 0.52 in OD x 0.94 in L
Barrel Type:	Standard
Color:	Pink
Conductor Size:	1/0 AWG
Conductor Type:	Code Copper
Country of Origin:	MX
Die Code:	P42
Material:	Tin Plated Copper
Mounting Hole Size:	0.27 in
Overall Length:	2.7 in
Series:	LCDN
Specifications:	1 in L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.52 in W x 0.13 in THK
Tongue Type:	Narrow
Voltage Rating:	35 kV
