LCDN1/0-56D-X PAN

Name: LCDN1/0-56D-X PAN
Brand: Panduit
SKU: LCDN1/0-56D-X PAN
Price: 11.24 USD
Availability: OutOfStock

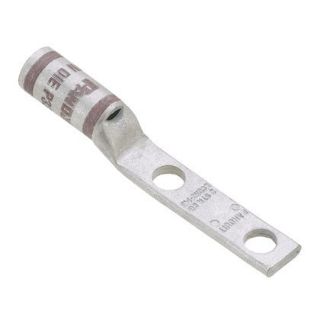

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDN1/0-56D-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$11.24 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDN1/0-56D-X, Lug Compression Connector, 2-Hole Type LCDN, 1/0 AWG Conductor, Die Code: P42, 35 kV, 5/16 in Stud, Narrow Tongue, 0.52 in W x 0.13 in THK Tongue, 3 in Overall Length, Standard Barrel, 0.39 in ID x 0.52 in OD x 0.94 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1 in L Wire Strip, 90 deg C, Tin Plated Copper, Pink

Application

Stranded Copper Code Conductors Applications

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed

Features

Narrow tongue width for limited space applications
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.39 in ID x 0.52 in OD x 0.94 in L
Barrel Type:	Standard
Color:	Pink
Conductor Size:	1/0 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Die Code:	P42
Material:	Tin Plated Copper
Mounting Hole Size:	1 in
Overall Length:	3 in
Series:	LCDN
Specifications:	1 in Stud Hole Spacing
Stud Size:	42.491 in
Temperature Rating:	90 deg C
Tongue Size:	0.52 in W x 0.13 in THK
Tongue Type:	Narrow
Voltage Rating:	35 kV
