LCDX2/0-14A-X PAN

Name: LCDX2/0-14A-X PAN
Brand: Panduit
SKU: LCDX2/0-14A-X PAN
Price: 11.62 USD
Availability: OutOfStock

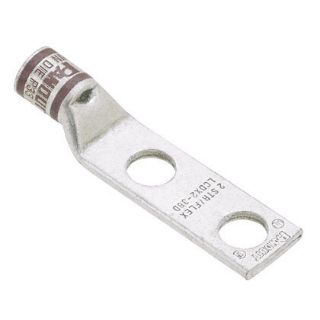

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDX2/0-14A-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$11.62 / EA

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX2/0-14A-X, Lug Compression Connector, 2-Hole Type LCDX, Stranded/Flex Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/4 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.59 in Overall Length, Standard Barrel, 0.51 in ID x 0.64 in OD x 0.83 in L Barrel, Specifications: 0.63 in Stud Hole Spacing, 7/8 in L Wire Strip, 90 deg C, Black

Application

For code conductor

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
For use with flexible, extra-flexible and code stranded copper conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.51 in ID x 0.64 in OD x 0.83 in L
Barrel Type:	Standard
Color:	Black
Conductor Size:	2/0 AWG
Conductor Type:	Extra-Flexible/Flexible/Stranded Copper
Country of Origin:	MX
Die Code:	P45
Material:	Tin Plated Copper
Mounting Hole Size:	42.954 in
Overall Length:	2.59 in
Series:	LCDX
Specifications:	0.63 in Stud Hole Spacing, 22 mm L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.96 in W x 0.13 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
