LCDX3/0-38DF-X PAN

Name: LCDX3/0-38DF-X PAN
Brand: Panduit
SKU: LCDX3/0-38DF-X PAN
Availability: OutOfStock

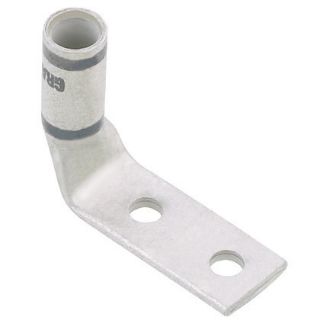

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDX3/0-38DF-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX3/0-38DF-X, Lug Compression Connector, 2-Hole Type LCDX-F, Stranded/Flex Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kV, 3/8 in Stud, 90 deg Tongue, 1.86 in L x 1.06 in W x 0.14 in THK Tongue, 2.84 in Overall Length, Standard Barrel, 0.57 in ID x 0.71 in OD x 0.91 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1 in L Wire Strip, 90 deg C, Orange

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.57 in ID x 0.71 in OD x 0.91 in L
Barrel Type:	Standard
Color:	Orange
Conductor Size:	3/0 AWG
Conductor Type:	Extra-Flexible/Flexible Copper
Country of Origin:	MX
Die Code:	P50
Material:	Tin Plated Copper
Mounting Hole Size:	1 in
Overall Length:	2.84 in
Series:	LCDX
Specifications:	1 in Stud Hole Spacing
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.06 in W x 0.14 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
