LCDX4-14BF-L PAN

Name: LCDX4-14BF-L PAN
Brand: Panduit
SKU: LCDX4-14BF-L PAN
Price: 10.15 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDX4-14BF-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$10.15 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

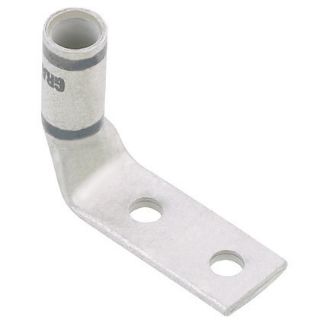

Panduit®, LCDX4-14BF-L, Compression Connector Lug, 2-Hole Type LCDX-F, Flexible/Code Conductor, 4 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, 90 deg Tongue, 1.37 in L x 0.55 in W x 0.09 in THK Tongue, 1.87 in Overall Length, Standard Barrel, 0.28 in ID x 0.38 in OD x 0.53 in L Barrel, Specifications: 16 mm L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Gray, 0.93 in H Dimensions

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, m and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.28 in ID x 0.38 in OD x 0.53 in L
Barrel Type:	Standard
Color:	Gray
Conductor Size:	3 AWG, 4 AWG, 5 AWG
Conductor Type:	Extra-Flexible/Flexible Copper
Country of Origin:	MX
Die Code:	P29
Dimensions:	0.93 in H
Material:	Tin Plated Copper
Mounting Hole Size:	0.27 in
Overall Length:	1.87 in
Series:	LCDX
Specifications:	16 mm L Wire Strip
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.55 in W x 0.09 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
