LCDX4/0-14AF-X PAN

Name: LCDX4/0-14AF-X PAN
Brand: Panduit
SKU: LCDX4/0-14AF-X PAN
Price: 18.13 USD
Availability: OutOfStock

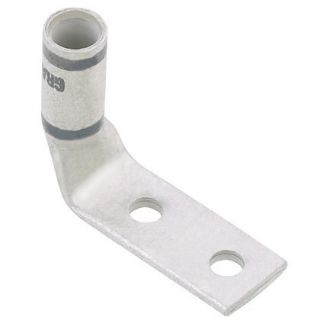

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDX4/0-14AF-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$18.13 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX4/0-14AF-X, Compression Connector Lug, 2-Hole Type LCDX-F, Flexible/Code Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/4 in Stud, 90 deg Tongue, 3 in L x 1.19 in W x 0.16 in THK Tongue, 2.28 in Overall Length, Standard Barrel, 0.65 in ID x 0.81 in OD x 1.03 in L Barrel, Specifications: 75 mm L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Purple

Application

For use with class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, m and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	0.65 in ID x 0.81 in OD x 1.03 in L
Barrel Type:	Standard
Color:	Purple
Conductor Size:	4/0 AWG
Conductor Type:	Extra-Flexible/Flexible/Stranded Copper
Country of Origin:	MX
Die Code:	P54
Material:	Tin Plated Copper
Mounting Hole Size:	0.27 in
Overall Length:	2.28 in
Series:	LCDX
Specifications:	0.63 in Stud Hole Spacing
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	1.19 in W x 0.16 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
