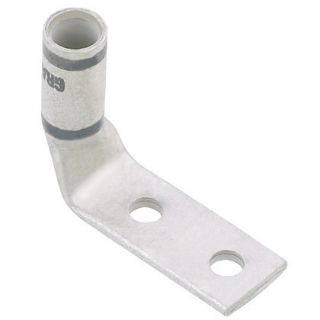

LCDX450-12F-6 PAN

Name: LCDX450-12F-6 PAN
Brand: Panduit
SKU: LCDX450-12F-6 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDX450-12F-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 6

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX450-12F-6, Lug Compression Connector, 2-Hole Type LCDX-F, Stranded/Flex Copper Conductor, 450 kcmil Conductor, Die Code: P87, 35 kV, 1/2 in Stud, 90 deg Tongue, 3 in L x 1.7 in W x 0.26 in THK Tongue, 4.44 in Overall Length, Standard Barrel, 0.92 in ID x 1.19 in OD x 1.4 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 1-7/16 in L Wire Strip, 90 deg C, Brown

Application

For code conductor

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin-plated to inhibit corrosion
For use with flexible, extra flexible and code stranded copper conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
450 kcmil class G, H, I, K, M and 444.4 kcmil DLO conductor

Specifications

Barrel Size:	0.92 in ID x 0.92 in OD x 1.4 in L
Barrel Type:	Standard
Color:	Brown
Conductor Size:	450 kcmil
Conductor Type:	Extra-Flexible/Flexible/Stranded Copper
Country of Origin:	MX
Die Code:	P87
Material:	Tin Plated Copper
Mounting Hole Size:	1.44 in
Overall Length:	4.44 in
Series:	LCDX-F
Specifications:	1-3/4 in Stud Hole Spacing, 1-7/16 in L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	3 in L x 1.7 in W x 0.26 in THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
