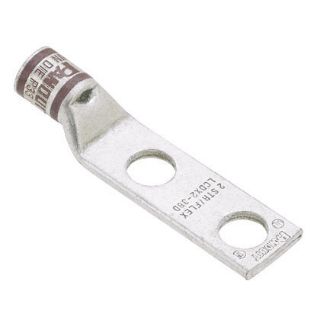

LCDX450-38D-6 PAN

Name: LCDX450-38D-6 PAN
Brand: Panduit
SKU: LCDX450-38D-6 PAN
Price: 37.24 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDX450-38D-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$37.24 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX450-38D-6, Lug Compression Connector, 2-Hole Type LCDX, Stranded/Flex Copper Conductor, 450 kcmil Conductor, Die Code: P87, 35 kV, 3/8 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 3.9 in Overall Length, Standard Barrel, 1.4 in L Barrel, Specifications: 1 in Stud Hole Spacing, 1-7/16 in L Wire Strip, 90 deg C, Brown

Application

For code conductor

Standards

Features

Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
For use with flexible, extra-flexible and code stranded copper conductors
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	1.4 in L
Barrel Type:	Standard
Color:	Brown
Conductor Size:	450 kcmil
Conductor Type:	Extra-Flexible/Flexible/Stranded Copper
Country of Origin:	MX
Die Code:	P87
Material:	Tin Plated Copper
Mounting Hole Size:	1.44 in
Overall Length:	3.9 in
Series:	LCDX
Specifications:	1 in Stud Hole Spacing, 1-7/16 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.7 in W x 0.26 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
