LCDX500-12H-6 PAN

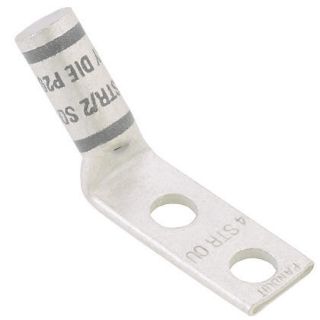

Picture of LCDX500-12H-6 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCDX500-12H-6
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$54.76 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX500-12H-6, Lug Compression Connector, 2-Hole Type LCDX-H, Stranded/Flex Copper Conductor, 500 kcmil Conductor, Die Code: P99, 35 kV, 1/2 in Stud, 45 deg Tongue, 1.89 in W x 0.26 in THK Tongue, 4.91 in Overall Length, Standard Barrel, 1.03 in ID x 1.3 in OD x 1.48 in L Barrel, Specifications: 1-3/4 in Stud Hole Spacing, 1-9/16 in L Wire Strip, 90 deg C, Pink

Application

For use with class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

ARRA Compliant | ASTM B545-97 Class C | Buy American Act Compliant | CSA C22.2 File No. 65/13 | cULus Listed | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:1.03 in ID x 1.3 in OD x 1.48 in L
Barrel Type:Standard
Color:Pink
Conductor Size:500 kcmil
Conductor Type:Extra-Flexible/Flexible/Stranded Copper
Country of Origin:MX
Die Code:P99
Material:Tin Plated Copper
Mounting Hole Size:1.56 in
Overall Length:4.91 in
Series:LCDX
Specifications:1-3/4 in Stud Hole Spacing
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:1.89 in W x 0.26 in THK
Tongue Type:45 deg
Voltage Rating:35 kV
