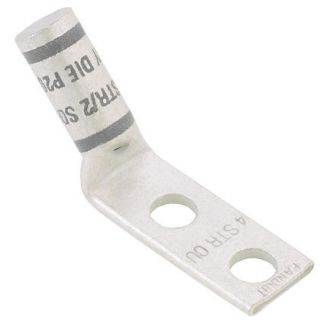

LCDX6-10GH-L PAN

Name: LCDX6-10GH-L PAN
Brand: Panduit
SKU: LCDX6-10GH-L PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDX6-10GH-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX6-10GH-L, Lug Compression Connector, 2-Hole Type LCDX-H, Stranded/Flex Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, #10 Stud, 45 deg Tongue, 0.46 in W x 0.08 in THK Tongue, 2.56 in Overall Length, Standard Barrel, 0.22 in ID x 0.31 in OD x 0.48 in L Barrel, Specifications: 1-1/2 in Stud Hole Spacing, 9/16 in L Wire Strip, 90 deg C, Blue

Application

For use with class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

6 AWG class B, C, G, H, I, K, M and DLO conductor
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
For use with class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Specifications

Barrel Size:	0.22 in ID x 0.31 in OD x 0.48 in L
Barrel Type:	Standard
Color:	Blue
Conductor Size:	6 AWG
Conductor Type:	Flexible/Extra-Flexible/Copper/Stranded
Country of Origin:	MX
Die Code:	P24
Material:	Tin Plated Copper
Mounting Hole Size:	9/16 in
Overall Length:	2.56 in
Series:	LCDX
Specifications:	1-1/2 in Stud Hole Spacing, 9/16 in L Wire Strip
Stud Size:	#10
Temperature Rating:	90 deg C
Tongue Size:	0.46 in W x 0.08 in THK
Tongue Type:	45 deg
Voltage Rating:	35 kV
