LCDX8-10A-L PAN

Name: LCDX8-10A-L PAN
Brand: Panduit
SKU: LCDX8-10A-L PAN
Price: 4.24 USD
Availability: OutOfStock

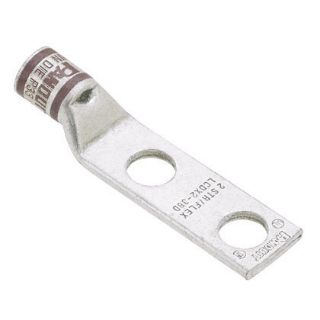

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDX8-10A-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$4.24 / EA

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX8-10A-L, Lug Compression Connector, 2-Hole Type LCDX, Stranded/Flex Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, #10 Stud, Straight Tongue, 0.41 in W x 0.08 in THK Tongue, 1.74 in Overall Length, Standard Barrel, 0.18 in ID x 0.27 in OD x 0.42 in L Barrel, Specifications: 0.63 in Stud Hole Spacing, 1/2 in L Wire Strip, 90 deg C, Red

Application

For class G, H, I, K, M and diesel locomotive flexible, extra flexible and code stranded copper conductors

Standards

Features

8 AWG class B, C, G, H, I, K, M and DLO conductor
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	0.18 in ID x 0.27 in OD x 0.42 in L
Barrel Type:	Standard
Color:	Red
Conductor Size:	8 AWG
Conductor Type:	Flexible/Extra-Flexible Stranded Copper
Country of Origin:	MX
Die Code:	P21
Material:	Tin Plated Copper
Mounting Hole Size:	42.767 in
Overall Length:	1.74 in
Series:	LCDX
Specifications:	0.63 in Stud Hole Spacing, 1/2 in L Wire Strip
Stud Size:	#10
Temperature Rating:	90 deg C
Tongue Size:	0.41 in W x 0.08 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
