LCDX8-14B-L PAN

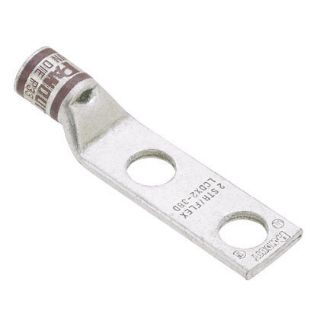

Picture of LCDX8-14B-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCDX8-14B-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4.49 / EA
This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDX8-14B-L, Lug Compression Connector, 2-Hole Type LCDX, Stranded/Flex Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 1.95 in Overall Length, Standard Barrel, 0.18 in ID x 0.27 in OD x 0.42 in L Barrel, Specifications: 3/4 in Stud Hole Spacing, 1/2 in L Wire Strip, 90 deg C, Red

Application

For code conductor

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65-03 | NEBS Level 3 | RoHS Compliant | UL 486A | UL 486B File No. E52164

Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:0.18 in ID x 0.27 in OD x 0.42 in L
Barrel Type:Standard
Color:Red
Conductor Size:8 AWG
Conductor Type:Extra-Flexible/Flexible/Stranded Copper
Country of Origin:MX
Die Code:P21
Material:Tin Plated Copper
Mounting Hole Size:42.767 in
Overall Length:1.95 in
Series:LCDX
Specifications:1/2 in L Wire Strip, 3/4 in Stud Hole Spacing
Stud Size:1/4 in
Temperature Rating:90 deg C
Tongue Size:0.48 in W x 0.07 in THK
Tongue Type:Straight
Voltage Rating:35 kV
