LCDXN2-14AF-E PAN

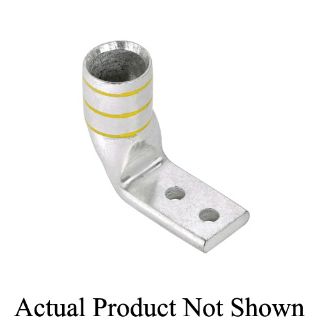

Picture of LCDXN2-14AF-E PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCDXN2-14AF-E
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$11.30 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDXN2-14AF-E, Compression Connector Lug, 2-Hole Type LCDXN-F, Flexible Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/4 in Stud, 90 deg/Narrow Tongue, 1.26 in L x 0.47 in W x 0.13 in THK Tongue, 1.94 in Overall Length, Standard Barrel, 0.36 in ID x 0.47 in OD Barrel, Specifications: 17.5 mm L Wire Strip, 90 deg C, 0.27 in Mounting Hole, Tin Plated Copper, Brown, 1.17 in H Dimensions

Application

For diesel locomotive code conductor

Standards

ABS Certified | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/03 | NEBS Level 3 | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Narrow tongue width for limited space applications
  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • For use with flexible copper conductors
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
  • 2 AWG class B, C, G, H, I, K, M and DLO conductor

Specifications

Barrel Size:0.36 in ID x 0.47 in OD
Barrel Type:Standard
Color:Brown
Conductor Size:2 AWG
Conductor Type:Flexible
Country of Origin:MX
Die Code:P33
Dimensions:1.17 in H
Material:Tin Plated Copper
Mounting Hole Size:0.27 in
Overall Length:1.94 in
Series:LCDXN-F
Specifications:0.63 in Stud Hole Spacing, 11/16 in L Wire Strip
Stud Size:1/4 in
Temperature Rating:90 deg C
Tongue Size:1.26 in L x 0.47 in W x 0.13 in THK
Tongue Type:90 deg/Narrow
Voltage Rating:35 kV
