LCDXN350-38D-6 PAN

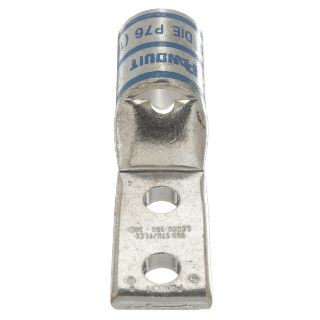

Picture of LCDXN350-38D-6 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCDXN350-38D-6
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$39.28 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDXN350-38D-6, Compression Connector Lug, 2-Hole Type LCDXN, Stranded/Flex Copper Conductor, 350 kcmil Conductor, Die Code: P76, 35 kV, 3/8 in Stud, Narrow Tongue, 1.06 in W x 0.26 in THK Tongue, 3.74 in Overall Length, Standard Barrel, 0.84 in ID x 1.06 in OD x 1.29 in L Barrel, Specifications: 1 in Hole Spacing, 1-3/8 in L Wire Strip, Tin Plated Finish, 90 deg C, Blue

Application

For diesel locomotive code conductor

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65-03 | NEBS Level 3 | RoHS Compliant | UL 486A | UL 486B File No. E52164

Features

  • Narrow tongue width for limited space applications
  • Can be used with code conductor and flex conductor class: G, H, I, K, M and diesel locomotive
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Inspection window to visually assure full conductor insertion
  • Tin plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:0.84 in ID x 1.06 in OD x 1.29 in L
Barrel Type:Standard
Color:Blue
Conductor Size:350 kcmil
Conductor Type:Flexible Copper
Country of Origin:MX
Die Code:P76
Material:Copper
Mounting Hole Size:1.38 in
Overall Length:3.74 in
Series:LCDXN
Specifications:1 in Hole Spacing, 1-3/8 in L Wire Strip, Tin Plated Finish
Stud Size:3/8 in
Temperature Rating:90 deg C
Tongue Size:1.06 in W x 0.22 in THK
Tongue Type:Narrow
Voltage Rating:35 kV
