LCDXN500-12-6 PAN

Name: LCDXN500-12-6 PAN
Brand: Panduit
SKU: LCDXN500-12-6 PAN
Price: 71.67 USD
Availability: OutOfStock

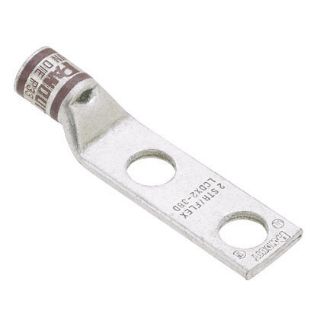

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCDXN500-12-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$71.67 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LCDXN500-12-6, Compression Connector Lug, 2-Hole Type LCDXN, Flexible Conductor, 500 kcmil Conductor, Die Code: P99, 35 kV, 1/2 in Stud, Narrow/Straight Tongue, 1.3 in W x 0.28 in THK Tongue, Standard Barrel, 1.48 in L Barrel, Specifications: 1-9/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Pink

Application

For use with class G, H, I, K, M and diesel locomotive code conductor and flex conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed

Features

Narrow tongue width for limited space applications
Can be used with code conductor and flex conductor class G, H, I, K, m and diesel locomotive
Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion

Specifications

Barrel Size:	1.48 in L
Barrel Type:	Standard
Color:	Pink
Conductor Size:	500 kcmil
Conductor Type:	Flexible
Country of Origin:	MX
Die Code:	P99
Material:	Tin Plated Copper
Series:	LCDXN
Specifications:	1-9/16 in L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	90 deg C
Tongue Size:	1.3 in W x 0.28 in THK
Tongue Type:	Narrow
Voltage Rating:	35 kV
