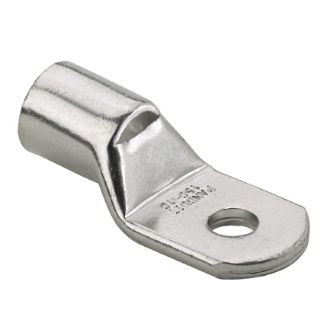

LCMA10-5-C PAN

Name: LCMA10-5-C PAN
Brand: Panduit
SKU: LCMA10-5-C PAN
Price: 2.50 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMA10-5-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$2.50 / EA

Description

Brand Name

Panduit®

Type

1-Hole Metric

Description

Panduit®, LCMA10-5-C, Compression Connector Lug, 1-Hole Type LCMA Metric, Rigid Stranded Copper Conductor, 10 sq-mm Conductor, Die Code: P21, 35 kV, M5 Stud, Straight Tongue, 11 mm W x 1.2 mm THK Tongue, 30.8 mm Overall Length, Standard Barrel, 4.5 mm ID x 6.2 mm OD x 11 mm L Barrel, Specifications: 12.5 mm L Wire Strip, 90 deg C, 5.5 mm Mounting Hole, Red

Application

For class 2 stranded copper conductors

Standards

Features

Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Product information marked on connector for selection and installations
Rounded tongue convenient for use in tight spaces
Internally beveled wire entry for fast and easy installations
Color coded barrel
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
For use with class 2 stranded copper conductors

Specifications

Barrel Size:	4.5 mm ID x 6.2 mm OD x 11 mm L
Barrel Type:	Seamless/Standard
Color:	Red
Conductor Size:	10 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Die Code:	P21
Material:	Tin Plated Copper
Mounting Hole Size:	5.5 mm
Overall Length:	30.8 mm
Series:	LCMA
Specifications:	12.5 mm L Wire Strip
Stud Size:	M5
Temperature Rating:	90 deg C
Tongue Size:	11 mm W x 1.2 mm THK
Tongue Type:	Straight
Voltage Rating:	35 kV
