LCMA300-12F-5 PAN

Name: LCMA300-12F-5 PAN
Brand: Panduit
SKU: LCMA300-12F-5 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMA300-12F-5

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 5

Description

Brand Name

Panduit®

Type

1-Hole Metric

Description

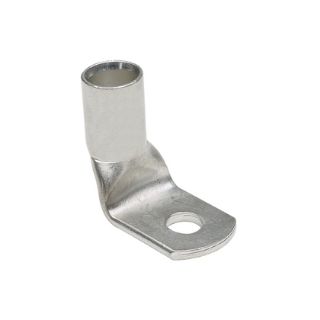

Panduit®, LCMA300-12F-5, Compression Connector Lug, 1-Hole Type LCMA-F Metric, Rigid Stranded Copper Conductor, 300 sq-mm Conductor, Die Code: P94, 35 kV, M12 Stud, 90 deg Tongue, 42.5 mm W x 5.4 mm THK Tongue, 77.3 mm Overall Length, Standard Barrel, 23.5 mm ID x 29 mm OD x 40.3 mm L Barrel, Specifications: 41.8 mm L Wire Strip, 90 deg C, 14 mm Mounting Hole, Green, 68.5 mm H Dimensions

Application

For copper class 2r rigid, class 5f and class 6f flexible stranded conductor

Standards

Features

Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Product information marked on connector for selection and installation
Rounded tongue convenient for use in tight spaces
Internally beveled wire entry for fast and easy installation
Color coded barrel
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
For use with class 2 stranded copper conductors

Specifications

Barrel Size:	23.5 mm ID x 29 mm OD x 40.3 mm L
Barrel Type:	Standard
Color:	Green
Conductor Size:	240 to 300 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Die Code:	P94
Dimensions:	68.5 mm H
Material:	Tin Plated Copper
Mounting Hole Size:	14 mm
Overall Length:	77.3 mm
Series:	LCMA
Specifications:	41.8 mm L Wire Strip
Stud Size:	M12
Temperature Rating:	90 deg C
Tongue Size:	42.5 mm W x 5.4 mm THK
Tongue Type:	90 deg
Voltage Rating:	35 kV
