LCMA500-16-1 PAN

Name: LCMA500-16-1 PAN
Brand: Panduit
SKU: LCMA500-16-1 PAN
Price: 110.57 USD
Availability: OutOfStock

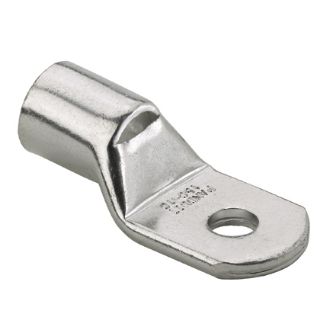

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMA500-16-1

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$110.57 / EA

Description

Brand Name

Panduit®

Type

1-Hole Metric

Description

Panduit®, LCMA500-16-1, Lug Compression Connector, 1-Hole Type LCMA Metric, Rigid Stranded Copper Conductor, 500 sq-mm Conductor, Die Code: P125, 35 kV, M16 Stud, Round/Straight Tongue, 57.5 mm W x 8.9 mm THK Tongue, 120 mm Overall Length, Standard Barrel, 31 mm ID x 40 mm OD x 46.5 mm L Barrel, Specifications: 48 mm L Wire Strip, 90 deg C

Standards

Features

Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Product information marked on connector for selection and installation
Rounded tongue convenient for use in tight spaces
Internally beveled wire entry for fast and easy installation
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® tools and dies

Specifications

Barrel Size:	31 mm ID x 40 mm OD x 46.5 mm L
Barrel Type:	Standard
Conductor Size:	500 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Die Code:	P125
Material:	Tin Plated Copper
Mounting Hole Size:	18 mm
Overall Length:	120 mm
Series:	LCMA
Specifications:	48 mm L Wire Strip
Stud Size:	M16
Temperature Rating:	90 deg C
Tongue Size:	57.5 mm W
Tongue Type:	Round/Straight
Voltage Rating:	35 kV
