LCMAX300-10-5 PAN

Name: LCMAX300-10-5 PAN
Brand: Panduit
SKU: LCMAX300-10-5 PAN
Availability: OutOfStock

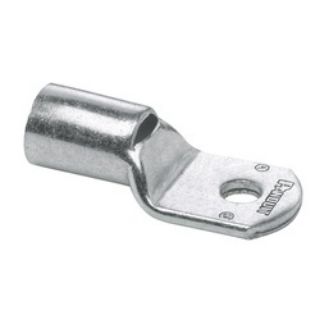

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMAX300-10-5

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole Metric

Description

Panduit®, LCMAX300-10-5, Lug Compression Connector, 1-Hole Type LCMAX Metric, Stranded/Flex Copper Conductor, 300 sq-mm Conductor, 35 kV, M10 Stud, Straight Tongue, 48 mm W x 6.7 mm THK Tongue, 108 mm Overall Length, Standard Barrel, 23.5 mm ID x 29 mm OD x 40.3 mm L Barrel, Specifications: 41.8 mm L Wire Strip, 90 deg C

Standards

Features

Inspection window to visually assure full conductor insertion
Tin plated to inhibit corrosion
Product information marked on connector for selection and installation
Internally beveled wire entry for fast and easy installation
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® tools and dies

Specifications

Barrel Size:	23.5 mm ID x 29 mm OD x 40.3 mm L
Barrel Type:	Standard
Conductor Size:	300 sq-mm
Conductor Type:	Flexible Copper
Country of Origin:	IN
Material:	Tin Plated Copper
Overall Length:	108 mm
Series:	LCMAX
Specifications:	41.8 mm L Wire Strip
Stud Size:	M10
Temperature Rating:	90 deg C
Tongue Size:	48 mm W x 6.7 mm THK
Tongue Type:	Straight
Voltage Rating:	35 kV
