LCMB120-8-X PAN

Name: LCMB120-8-X PAN
Brand: Panduit
SKU: LCMB120-8-X PAN
Availability: OutOfStock

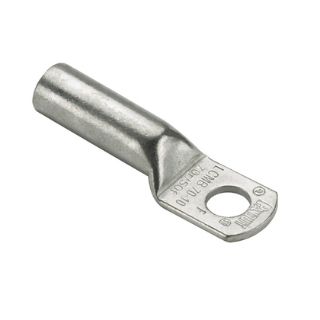

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMB120-8-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

1-Hole Metric

Description

Panduit®, LCMB120-8-X, Compression Connector Lug, 1-Hole Type LCMB Metric, Rigid Stranded Copper Conductor, 120 sq-mm Conductor, Die Code: P62, 35 kV, M8 Stud, Straight Tongue, 27.5 mm W x 3.5 mm THK Tongue, 80.2 mm Overall Length, Long Barrel, 15.2 mm ID x 18.6 mm OD x 39.7 mm L Barrel, Specifications: 41.3 mm L Wire Strip, 90 deg C, 9 mm Mounting Hole, Yellow

Application

For copper class 2r rigid, class 5f and class 6f flexible stranded conductor

Standards

Features

Product information marked on connector for easy selection and installation
99.9% pure copper and tin plated to a nominal thickness of 320 u-in (8 um) to provide a high quality connection
Internally beveled wire entry for fast and easy installation
Rounded tongue for 1-hole lugs convenient for use in tight spaces

Specifications

Barrel Size:	15.2 mm ID x 18.6 mm OD x 39.7 mm L
Barrel Type:	Long
Color:	Yellow
Conductor Size:	120 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Die Code:	P62
Material:	Tin Plated Copper
Mounting Hole Size:	9 mm
Overall Length:	80.2 mm
Series:	LCMB
Specifications:	41.3 mm L Wire Strip
Stud Size:	M8
Temperature Rating:	90 deg C
Tongue Size:	27.5 mm W x 3.5 mm THK
Tongue Type:	Round/Straight
Voltage Rating:	35 kV
