LCMB300-20-6 PAN

Name: LCMB300-20-6 PAN
Brand: Panduit
SKU: LCMB300-20-6 PAN
Availability: OutOfStock

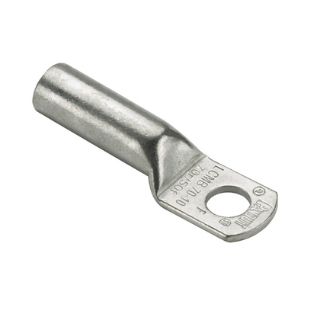

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMB300-20-6

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 6

Description

Brand Name

Panduit®

Type

1-Hole Metric

Description

Panduit®, LCMB300-20-6, Compression Connector Lug, 1-Hole Type LCMB Metric, Rigid Stranded Copper Conductor, 300 sq-mm Conductor, Die Code: P94, 35 kV, M20 Stud, Straight Tongue, 42.5 mm W x 5.3 mm THK Tongue, 122.6 mm Overall Length, Long Barrel, 23.5 mm ID x 29 mm OD x 68.4 mm L Barrel, Specifications: 70 mm L Wire Strip, 90 deg C, 22 mm Mounting Hole, Green

Application

For copper class 2r rigid, class 5f and class 6f flexible stranded conductor

Standards

Features

Product information marked on connector for easy selection and installation
99.9% pure copper and tin plated to a nominal thickness of 320 u-in (8 um) to provide a high quality connection
Internally beveled wire entry for fast and easy installation
Rounded tongue for 1-hole lugs convenient for use in tight spaces

Specifications

Barrel Size:	23.5 mm ID x 29 mm OD x 68.4 mm L
Barrel Type:	Long
Color:	Green
Conductor Size:	240 to 300 sq-mm
Conductor Type:	Copper
Country of Origin:	IN
Die Code:	P94
Material:	Tin Plated Copper
Mounting Hole Size:	22 mm
Overall Length:	122.6 mm
Series:	LCMB
Specifications:	70 mm L Wire Strip
Stud Size:	M20
Temperature Rating:	90 deg C
Tongue Size:	42.5 mm W x 5.3 mm THK
Tongue Type:	Straight
Voltage Rating:	35 kV
