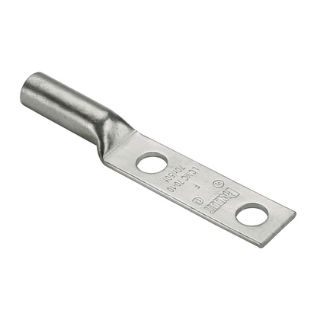

LCMC150-12-X PAN

Name: LCMC150-12-X PAN
Brand: Panduit
SKU: LCMC150-12-X PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMC150-12-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole Metric

Description

Panduit®, LCMC150-12-X, Compression Connector Lug, 2-Hole Type LCMC Metric, Rigid Stranded Copper Conductor, 150 sq-mm Conductor, 35 kV, M12 Stud, Straight Tongue, 30.5 mm W x 4.4 mm THK Tongue, 144.5 mm Overall Length, Long Barrel, 16.5 mm ID x 21 mm OD x 57 mm L Barrel, Specifications: 58.6 mm L Wire Strip, 90 deg C, 14 mm Mounting Hole

Application

For copper class 2r rigid, class 5f and class 6f flexible stranded conductor

Standards

Features

Product information marked on connector for easy selection and installation
99.9% pure copper and tin plated to a nominal thickness of 320 u-in (8 um) to provide a high quality connection
Internally beveled wire entry for fast and easy installation
Rounded tongue for 1-hole lugs convenient for use in tight spaces

Specifications

Barrel Size:	16.5 mm ID x 21 mm OD x 57 mm L
Barrel Type:	Long
Conductor Size:	150 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Material:	Tin Plated Copper
Mounting Hole Size:	14 mm
Overall Length:	144.5 mm
Series:	LCMC
Specifications:	58.6 mm L Wire Strip
Stud Size:	M12
Temperature Rating:	90 deg C
Tongue Size:	30.5 mm W x 4.4 mm THK
Tongue Type:	Straight
Voltage Rating:	35 kV
