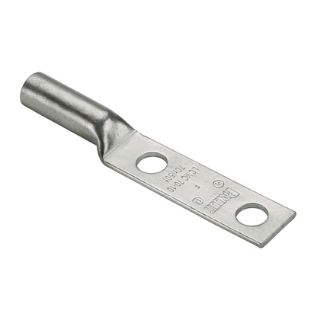

LCMC25-8-L PAN

Name: LCMC25-8-L PAN
Brand: Panduit
SKU: LCMC25-8-L PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMC25-8-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole Metric

Description

Panduit®, LCMC25-8-L, Lug Compression Connector, 2-Hole Type LCMC Metric, Rigid Stranded/Flex Copper Conductor, 16 to 25 sq-mm Conductor, 35 kV, M8 Stud, Straight Tongue, 15.5 mm W x 1.6 mm THK Tongue, 93.2 mm Overall Length, Long Barrel, 6.9 mm ID x 8.8 mm OD x 26.7 mm L Barrel, Specifications: 44.5 mm Stud Hole Spacing, 28.3 mm L Wire Strip, 90 deg C

Standards

Features

Tin plated to inhibit corrosion
Product information marked on connector for selection and installation
Internally beveled wire entry for fast and easy installation
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® tools and dies
Without inspection window

Specifications

Barrel Size:	6.9 mm ID x 8.8 mm OD x 26.7 mm L
Barrel Type:	Long
Conductor Size:	16 to 25 sq-mm
Conductor Type:	Rigid Stranded/Flex Copper
Country of Origin:	IN
Material:	Tin Plated Copper
Overall Length:	93.2 mm
Series:	LCMC
Specifications:	44.5 mm Stud Hole Spacing, 28.3 mm L Wire Strip
Stud Size:	M8
Temperature Rating:	90 deg C
Tongue Size:	15.5 mm W x 1.6 mm THK
Tongue Type:	Straight
Voltage Rating:	35 kV
