LCMC300-00-6 PAN

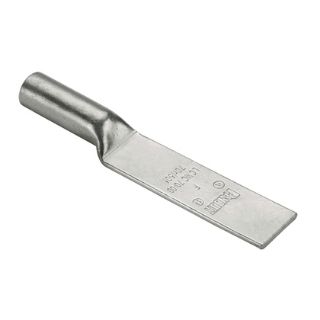

Picture of LCMC300-00-6 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LCMC300-00-6
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$107.18 / EA
This product has a minimum quantity of 6

Description

Brand Name

Panduit®

Type

2-Hole Metric

Description

Panduit®, LCMC300-00-6, Lug Compression Connector, 2-Hole Type LCMC Metric, Rigid Stranded/Flex Copper Conductor, 240 to 300 sq-mm Conductor, 35 kV, Blank/Straight Tongue, 86.5 mm L x 42.5 mm W x 5.3 mm THK Tongue, 167.1 mm Overall Length, Long Barrel, 23.5 mm ID x 29 mm OD x 68.4 mm L Barrel, Specifications: 86.5 mm Stud Hole Spacing, 70 mm L Wire Strip, 90 deg C

Standards

ARRA Compliant | ASTM B545-97 | Buy American Act Compliant | CE Marked | CSA C22.2 File No. 65/13 | IEC/EN 61238-1:2003 Class B with Class 2r Wire | RoHS Compliant | UL 486A/486B File No. E52164

Features

  • Tin plated to inhibit corrosion
  • Color coded barrel
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:23.5 mm ID x 29 mm OD x 68.4 mm L
Barrel Type:Long
Conductor Size:240 to 300 sq-mm
Conductor Type:Rigid Stranded/Flex Copper
Country of Origin:IN
Material:Tin Plated Copper
Overall Length:167.1 mm
Series:LCMC
Specifications:86.5 mm Stud Hole Spacing, 70 mm L Wire Strip
Temperature Rating:90 deg C
Tongue Size:86.5 mm L x 42.5 mm W x 5.3 mm THK
Tongue Type:Blank/Straight
Voltage Rating:35 kV
