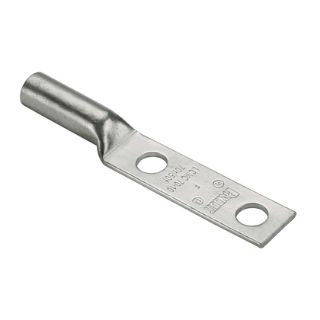

LCMC50-10-E PAN

Name: LCMC50-10-E PAN
Brand: Panduit
SKU: LCMC50-10-E PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMC50-10-E

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 20

Description

Brand Name

Panduit®

Type

2-Hole Metric

Description

Panduit®, LCMC50-10-E, Lug Compression Connector, 2-Hole Type LCMC Metric, Rigid Stranded/Flex Copper Conductor, 35 to 50 sq-mm Conductor, 35 kV, M10 Stud, Straight Tongue, 18 mm W x 2.5 mm THK Tongue, 107.3 mm Overall Length, Long Barrel, 9.8 mm ID x 12.3 mm OD x 36.6 mm L Barrel, Specifications: 44.5 mm Stud Hole Spacing, 38.2 mm L Wire Strip, 90 deg C

Standards

Features

Tin plated to inhibit corrosion
Color coded barrel
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:	9.8 mm ID x 12.3 mm OD x 36.6 mm L
Barrel Type:	Long
Conductor Size:	35 to 50 sq-mm
Conductor Type:	Rigid Stranded/Flex Copper
Country of Origin:	IN
Material:	Tin Plated Copper
Overall Length:	107.3 mm
Series:	LCMC
Specifications:	44.5 mm Stud Hole Spacing, 38.2 mm L Wire Strip
Stud Size:	M10
Temperature Rating:	90 deg C
Tongue Size:	18 mm W x 2.5 mm THK
Tongue Type:	Straight
Voltage Rating:	35 kV
