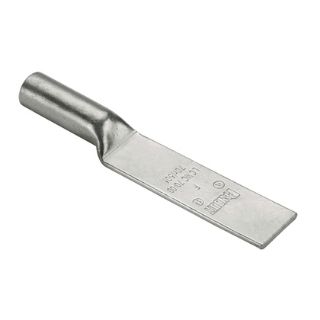

LCMC70-00-X PAN

Name: LCMC70-00-X PAN
Brand: Panduit
SKU: LCMC70-00-X PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMC70-00-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 10

Description

Brand Name

Panduit®

Type

2-Hole Metric

Description

Panduit®, LCMC70-00-X, Compression Connector Lug, Type LCMC Blank Metric, Rigid Stranded Copper Conductor, 70 sq-mm Conductor, 35 kV, Straight Tongue, 70.5 mm L x 20.8 mm W x 2.8 mm THK Tongue, 112.7 mm Overall Length, Long Barrel, 11.5 mm ID x 14.2 mm OD x 38 mm L Barrel, Specifications: 44.6 mm L Wire Strip, 90 deg C

Application

For copper class 2r rigid, class 5f and class 6f flexible stranded conductor

Standards

Features

Product information marked on connector for easy selection and installation
99.9% pure copper and tin plated to a nominal thickness of 320 u-in (8 um) to provide a high quality connection
Internally beveled wire entry for fast and easy installation
Rounded tongue for 1-hole lugs convenient for use in tight spaces

Specifications

Barrel Size:	11.5 mm ID x 14.2 mm OD x 38 mm L
Barrel Type:	Long
Conductor Size:	50 to 70 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Material:	Tin Plated Copper
Overall Length:	112.7 mm
Series:	LCMC
Specifications:	44.6 mm L Wire Strip
Temperature Rating:	90 deg C
Tongue Size:	70.5 mm L x 20.8 mm W x 2.8 mm THK
Tongue Type:	Blank/Straight
Voltage Rating:	35 kV
