LCMD150-12-X PAN

Name: LCMD150-12-X PAN
Brand: Panduit
SKU: LCMD150-12-X PAN
Price: 33.56 USD
Availability: OutOfStock

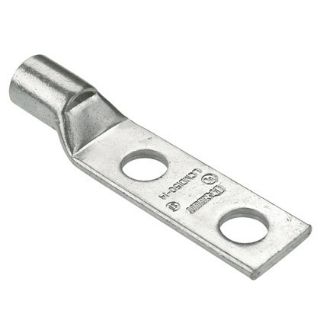

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMD150-12-X

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$33.56 / EA

Description

Brand Name

Panduit®

Type

2-Hole Metric

Description

Panduit®, LCMD150-12-X, Compression Connector Lug, 2-Hole Type LCMD Metric, Rigid Stranded Copper Conductor, 150 sq-mm Conductor, Die Code: P66, 35 kV, M12 Stud, Straight Tongue, 30.5 mm W x 4.5 mm THK Tongue, 115 mm Overall Length, Standard Barrel, 16.5 mm ID x 21 mm OD x 27.5 mm L Barrel, Specifications: 29 mm L Wire Strip, Tin Plated Finish, 90 deg C, 14 mm Mounting Hole, White

Application

For copper class 2r rigid stranded conductor

Standards

Features

Inspection window to visually assure full conductor insertion
Tin-plated to inhibit corrosion
Product information marked on connector for selection and installation
Internally beveled wire entry for fast and easy installation
Color coded barrel
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
For use with class 2 stranded copper conductors

Specifications

Barrel Size:	16-1/2 in ID x 21 in OD x 27-1/2 in L
Barrel Type:	Standard
Color:	White
Conductor Size:	150 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Die Code:	P66
Material:	Copper
Mounting Hole Size:	14 mm
Overall Length:	115 mm
Series:	LCMD
Specifications:	18 mm Wrench Clearance, 29 mm L Wire Strip, 44.5 mm Hole Spacing
Stud Size:	M12
Temperature Rating:	90 deg C
Tongue Size:	30.5 mm W x 4.3 mm THK
Tongue Type:	Straight
Voltage Rating:	35 kV
