LCMD16-6CD-Q PAN

Name: LCMD16-6CD-Q PAN
Brand: Panduit
SKU: LCMD16-6CD-Q PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LCMD16-6CD-Q

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

2-Hole Metric

Description

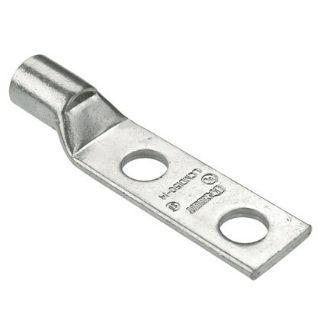

Panduit®, LCMD16-6CD-Q, Compression Connector Lug, 2-Hole Type LCMD Metric, Rigid Stranded Copper Conductor, 16 sq-mm Conductor, Die Code: P24, 35 kV, M6 Stud, Straight Tongue, 13 mm W x 1.3 mm THK Tongue, 59.5 mm Overall Length, Standard Barrel, 5.5 mm ID x 7.2 mm OD x 14.5 mm L Barrel, Specifications: 16 mm L Wire Strip, 90 deg C, 6.6 mm Mounting Hole, Blue

Application

For copper class 2r rigid stranded conductor

Standards

Features

Inspection window to visually assure full conductor insertion
Tin-plated to inhibit corrosion
Product information marked on connector for selection and installation
Internally beveled wire entry for fast and easy installation
Color coded barrel
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
For use with class 2 stranded copper conductors

Specifications

Barrel Size:	5.5 mm ID x 7.2 mm OD x 14.5 mm L
Barrel Type:	Standard
Color:	Blue
Conductor Size:	16 sq-mm
Conductor Type:	Rigid Stranded Copper
Country of Origin:	IN
Die Code:	P24
Material:	Tin Plated Copper
Mounting Hole Size:	6.6 mm
Overall Length:	59.5 mm
Series:	LCMD
Specifications:	10.3 mm Wrench Clearance, 16 mm L Wire Strip, 22 to 25 mm Hole Spacing
Stud Size:	M6
Temperature Rating:	90 deg C
Tongue Size:	13 mm W x 1.26 mm THK
Tongue Type:	Slotted/Straight
Voltage Rating:	35 kV
